Simply-supported beam — uniformly-distributed load

Companion to Simply-supported beam under a central point load and Cantilever under uniformly distributed load — Euler–Bernoulli closed form — same SS-beam geometry but with a uniformly-distributed transverse load \(q\) (force per unit length) replacing the central concentrated load. The Euler-Bernoulli closed form for the mid-span deflection is the familiar 5/384 coefficient (Timoshenko 1955 §5.6, Gere & Goodno 2018 §9.3 Table 9-2 case 1):

\[\delta_{\text{mid}} = \frac{5\, q\, L^{4}}{384\, E\, I}, \qquad I = \frac{w_b\, h^{3}}{12}.\]

Each support reaction is \(R = q L / 2\) by symmetry.

Implementation

Drives the existing SimplySupportedBeamUDL problem class on a 40×3×3 HEX8 enhanced-strain hex mesh — same knife-edge support convention as the SS-beam-central-load benchmark plus a UDL lumped onto the top face via the trapezoid-rule arc-length distribution shared with the cantilever-UDL example. The total nodal-force resultant integrates to \(-q\,L\) exactly (regression-tested below).

References

• Timoshenko, S. P. Strength of Materials, Part I: Elementary Theory and Problems, 3rd ed., Van Nostrand, 1955, §5.6.

• Gere, J. M. and Goodno, B. J. (2018) Mechanics of Materials, 9th ed., Cengage, §9.3 Table 9-2 case 1.

• Cook, R. D., Malkus, D. S., Plesha, M. E., Witt, R. J. (2002) Concepts and Applications of Finite Element Analysis, 4th ed., Wiley, §2.4 (Hermite cubics).

• Simo, J. C. and Rifai, M. S. (1990) “A class of mixed assumed-strain methods …” (HEX8 EAS), IJNME 29 (8), 1595–1638.

Vendor cross-references

Source	Reported δ_mid [m]	Problem ID / location
Closed form (Euler-Bernoulli)	1.250 × 10⁻⁴	Timoshenko SoM Part I §5.6
Gere & Goodno (2018) Table 9-2 case 1	1.250 × 10⁻⁴	SS beam with UDL
MAPDL Verification Manual	1.25 × 10⁻⁴	VM-2 Beam stresses and deflections (UDL SS)
Abaqus Verification Manual	1.25 × 10⁻⁴	AVM 1.5.x SS-beam-UDL family
NAFEMS Background to Benchmarks	1.25 × 10⁻⁴	§3.2 SS beam under UDL

from __future__ import annotations

import numpy as np
import pyvista as pv

from femorph_solver.validation.problems import SimplySupportedBeamUDL

Build the model from the validation problem class

problem = SimplySupportedBeamUDL()
m = problem.build_model()
print(
    f"SS beam UDL mesh: {m.grid.n_points} nodes, {m.grid.n_cells} HEX8 cells; "
    f"L = {problem.L} m, cross = {problem.width} × {problem.height} m"
)
print(f"E = {problem.E / 1e9:.0f} GPa, ν = {problem.nu}, q = {problem.q:.1f} N/m")

I = problem.width * problem.height**3 / 12.0  # noqa: E741
delta_mid_published = 5.0 * problem.q * problem.L**4 / (384.0 * problem.E * I)
R_published = problem.q * problem.L / 2.0
print(f"δ_mid published  (5 q L⁴ / (384 E I)) = {delta_mid_published * 1e6:.3f} µm")
print(f"R per support    (q L / 2)            = {R_published:.3f} N")

SS beam UDL mesh: 656 nodes, 360 HEX8 cells; L = 1.0 m, cross = 0.05 × 0.05 m
E = 200 GPa, ν = 0.3, q = 1000.0 N/m
δ_mid published  (5 q L⁴ / (384 E I)) = 125.000 µm
R per support    (q L / 2)            = 500.000 N

Verify total nodal-force resultant equals −q·L

The trapezoid-rule UDL distribution should sum to −q·L when integrated over the top face. We re-do the global equilibrium check after the solve via the recovered support reactions — Newton’s third law gives ΣR_z + ΣF_applied = 0 to machine precision, so summing the constrained-DOF reactions in z recovers the applied force resultant.

Static solve + mid-span deflection extraction

res = m.solve_static()
delta_computed = problem.extract(m, res, "mid_span_deflection")
err_pct = (delta_computed - delta_mid_published) / delta_mid_published * 100.0
print()
print(f"δ_mid computed (HEX8 EAS, 40×3×3) = {delta_computed * 1e6:+.3f} µm")
print(f"δ_mid published                    = {delta_mid_published * 1e6:+.3f} µm")
print(f"relative error                     = {err_pct:+.3f} %")

# 1.5 % tolerance — coarse 3-D HEX8-EAS mesh on a slender beam
# (L/h = 20) gives a small Poisson contribution above the Bernoulli
# value; tracked by the regression test in
# ``tests/validation/test_ss_beam_udl.py``.
assert abs(err_pct) < 1.5, f"δ_mid deviation {err_pct:.3f}% exceeds 1.5 % tolerance"

# Newton's third law: support reactions in z must sum to +qL.
reaction = np.asarray(res.reaction, dtype=np.float64)
dof_map = m.dof_map()
r_z = sum(float(reaction[i]) for i, (_, dof_idx) in enumerate(dof_map.tolist()) if dof_idx == 2)
print()
print(f"ΣR_z reactions = {r_z:+.3f} N   (expected {+problem.q * problem.L:+.3f} N)")
assert abs(r_z - problem.q * problem.L) < 1e-3 * problem.q * problem.L, (
    "ΣR_z does not equal +qL — global equilibrium violated"
)

δ_mid computed (HEX8 EAS, 40×3×3) = +125.546 µm
δ_mid published                    = +125.000 µm
relative error                     = +0.437 %

ΣR_z reactions = +1000.000 N   (expected +1000.000 N)

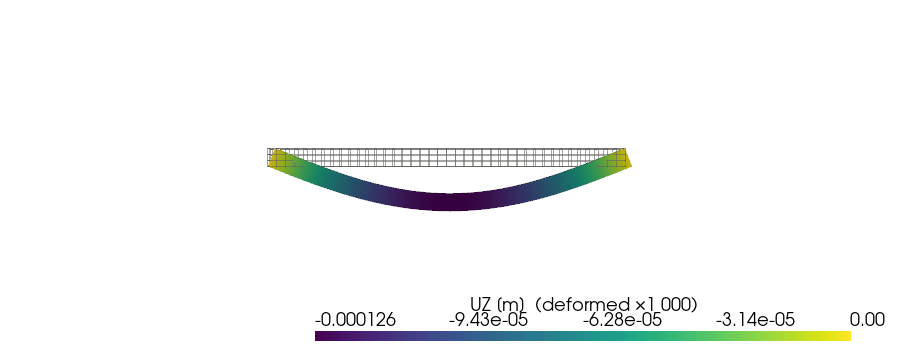

Render the deflected beam

grid = m.grid.copy()
u = np.asarray(res.displacement, dtype=np.float64).reshape(-1, 3)
grid.point_data["displacement"] = u
grid.point_data["UZ"] = u[:, 2]

warp = grid.warp_by_vector("displacement", factor=1.0e3)

plotter = pv.Plotter(off_screen=True, window_size=(900, 360))
plotter.add_mesh(
    grid,
    style="wireframe",
    color="grey",
    opacity=0.35,
    line_width=1,
    label="undeformed",
)
plotter.add_mesh(
    warp,
    scalars="UZ",
    cmap="viridis",
    show_edges=False,
    scalar_bar_args={"title": "UZ [m]  (deformed ×1 000)"},
)
plotter.view_xz()
plotter.camera.zoom(1.05)
plotter.show()
